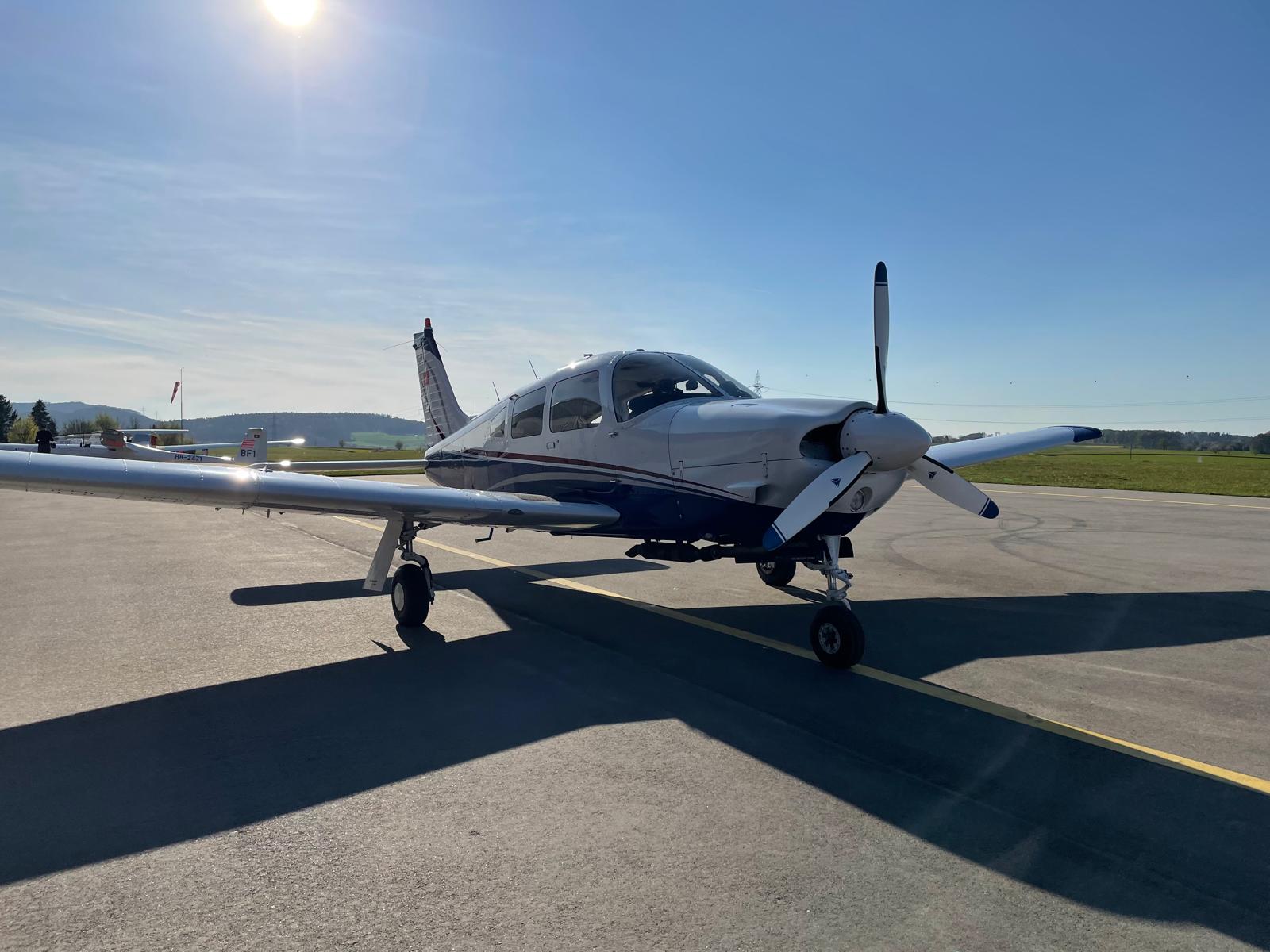

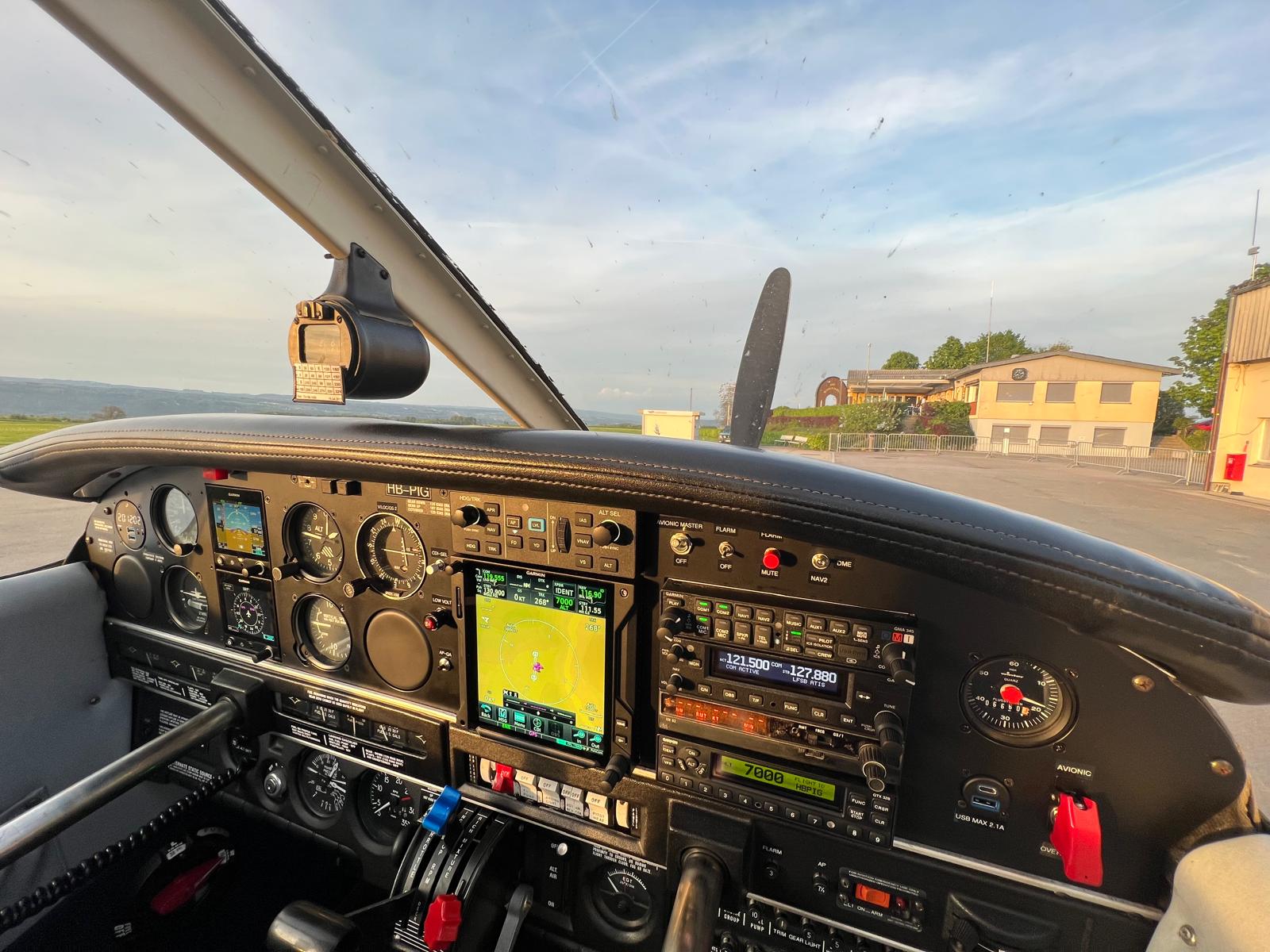

PIPER ARROW – P28R

1
2
3
4
5
6
7
8
9
10
1

Wingspan

10.82 Meter

2

Height

1.97 Meter

3

Propeller

Threeblade Constantspeed Propeller

Diameter

1.80 Meter

4

Fuel

AVGAS

Tank

291 Liter / 203.7 KG

Range

882 NM/ 1’631 km

5

Service ceiling

16’400 Feet

5000 Meters

6

Weight

1157 KG

7

Propulsion

Lycoming  IO360-C1C6
4 cylinder carburetor

Power

147 kW / 200 HP

Speed

126 Knots / 233 km/h

8

Length

7.96 Meter

9

Seats

4 Persons incl. Pilot

10

Wheelbase

3.2 Meter

Gear

retractable

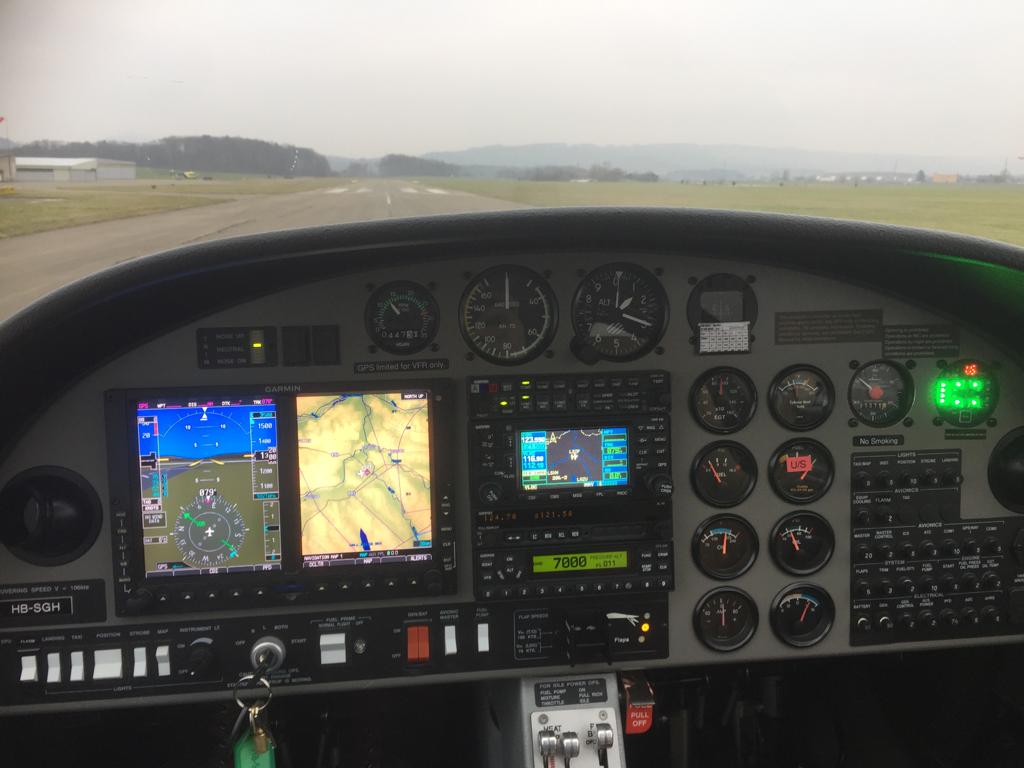

DIAMOND STAR – DA40

1
2
3
4
5
6
7
8
9
1

Wingspan

11.63 Meter

2

Height

1.97 Meter

3

Propeller

Threeblade Constantspeed Propeller

Diameter

1.80 Meter

4

Fuel

AVGAS

Tank capacity

189 Liters / 136 KG

Range

830 NM/ 1’537 km

5

Service ceiling

16’400 Feet

5000 Meters

6

Weight

1200 KG

7

Propulsion

Lycoming  IO360M1A
4 cylinder carburetor

Power

132 kW / 180 PS

Speed

142 Knots / 263 km/h

8

Length

8.06 Meter

9

Seats

4 Persons incl. Pilot

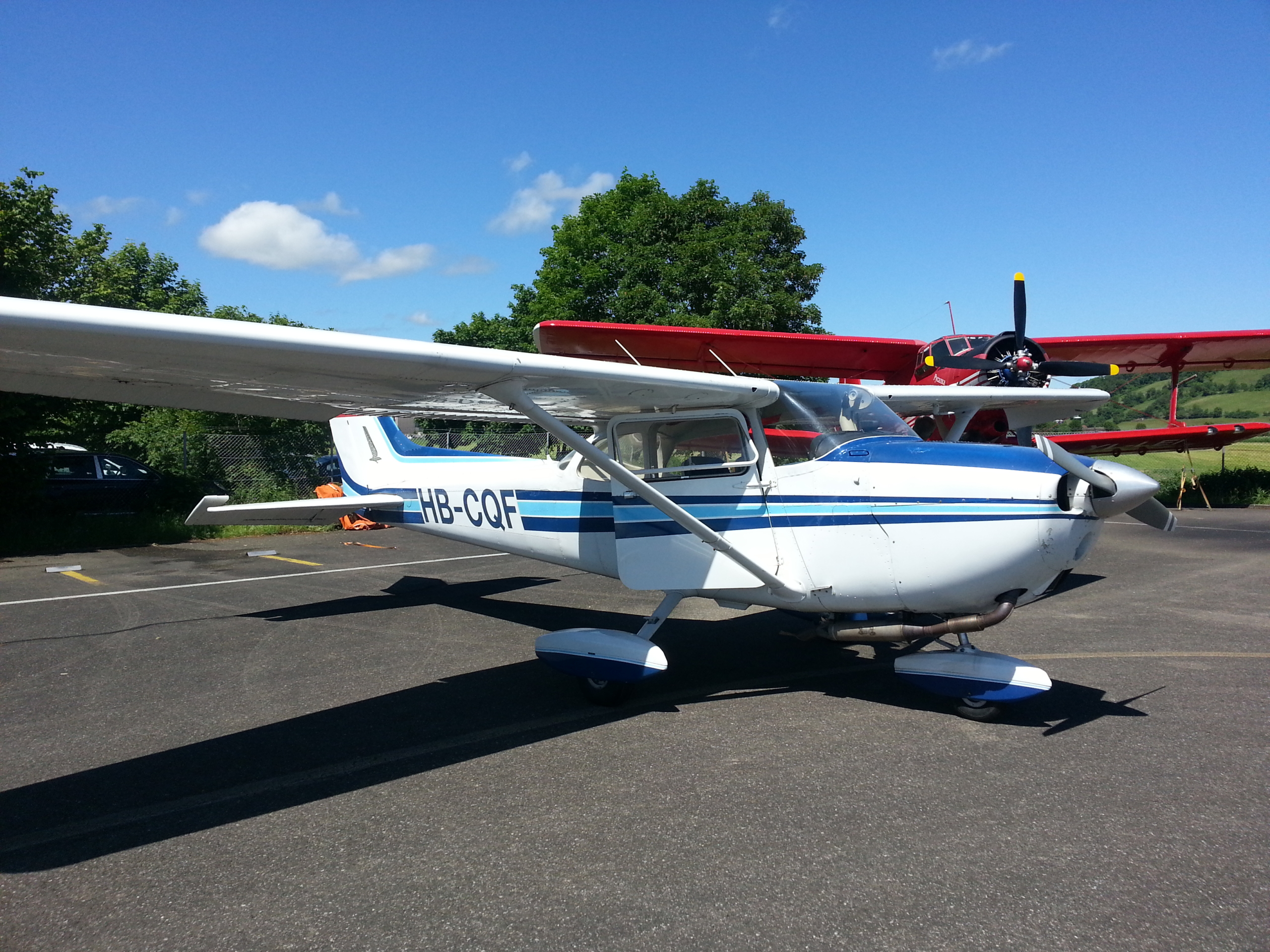

CESSNA 172 – C172

1
2
3
4
5
6
7
8
9
10
Cessna 172 in Meiringen
1

Wingspan

9.20 Meter

2

Height

2.20 Meter

3

Wheelbase

2.20 meter

4

Propeller

Two Blade Sensenich 76EM8SPY-0-60

Diameter

1.93 Meter

5

Fuel

Mogas or AVGAS

Tank capacity

180 Liter / 129 KG

Range

500 NM/ 925 km

6

Service ceiling

12’000 Feet

4000 Meters

7

Weight

1157 KG

8

Propulsion

Textron Lycoming O-360 A4M
4 cylinder carburettor

Power

132 kW / 180 HP

Speed

110 Knots / 200 km/h

9

Length

6.60 Meter

10

Seats

4 Persons incl. Pilot

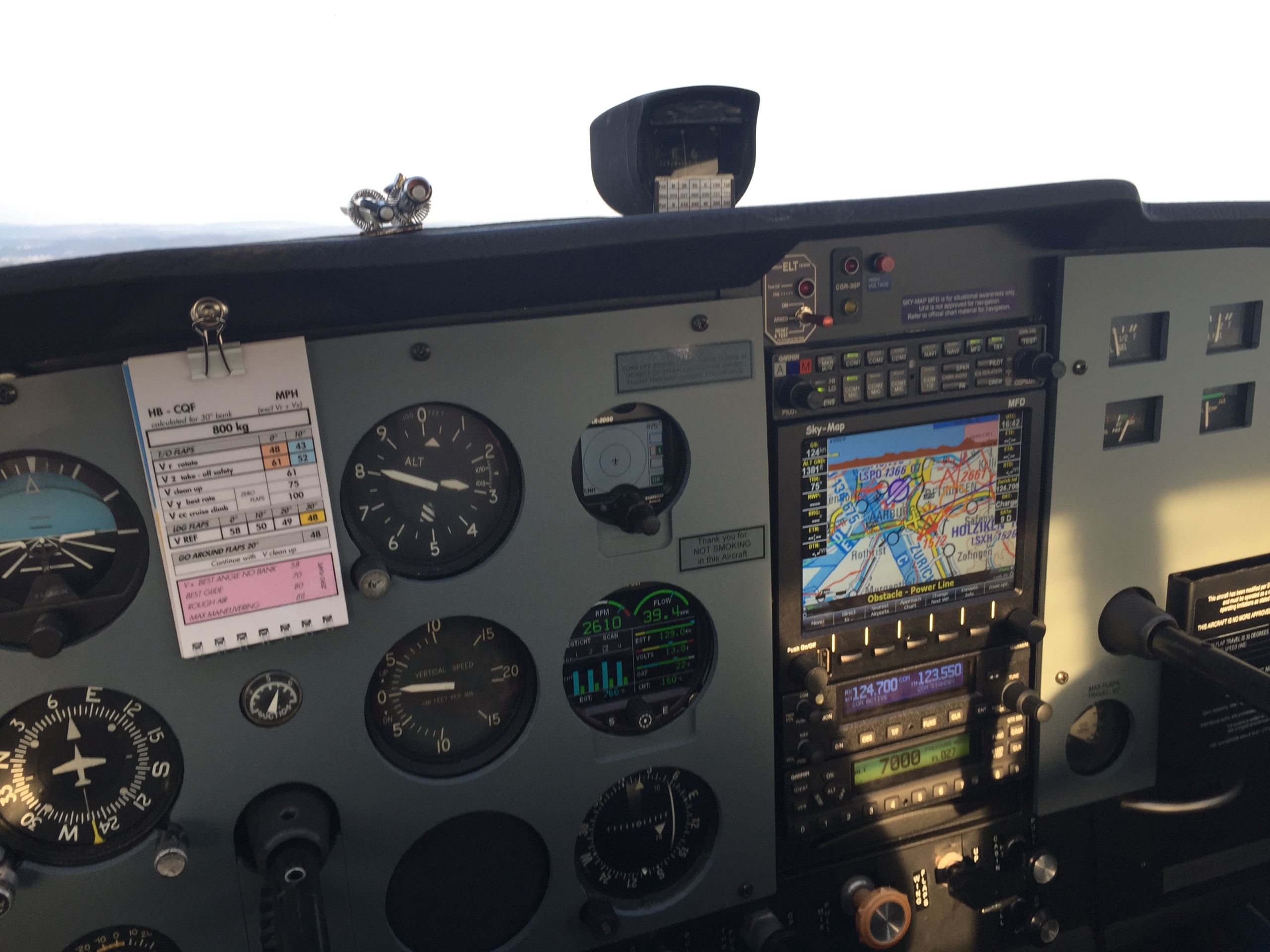

1
2
3
4
1

Quickreference Checkliste

2

Moving-Map-GPS

3

Flight yoke

4

Moscitos

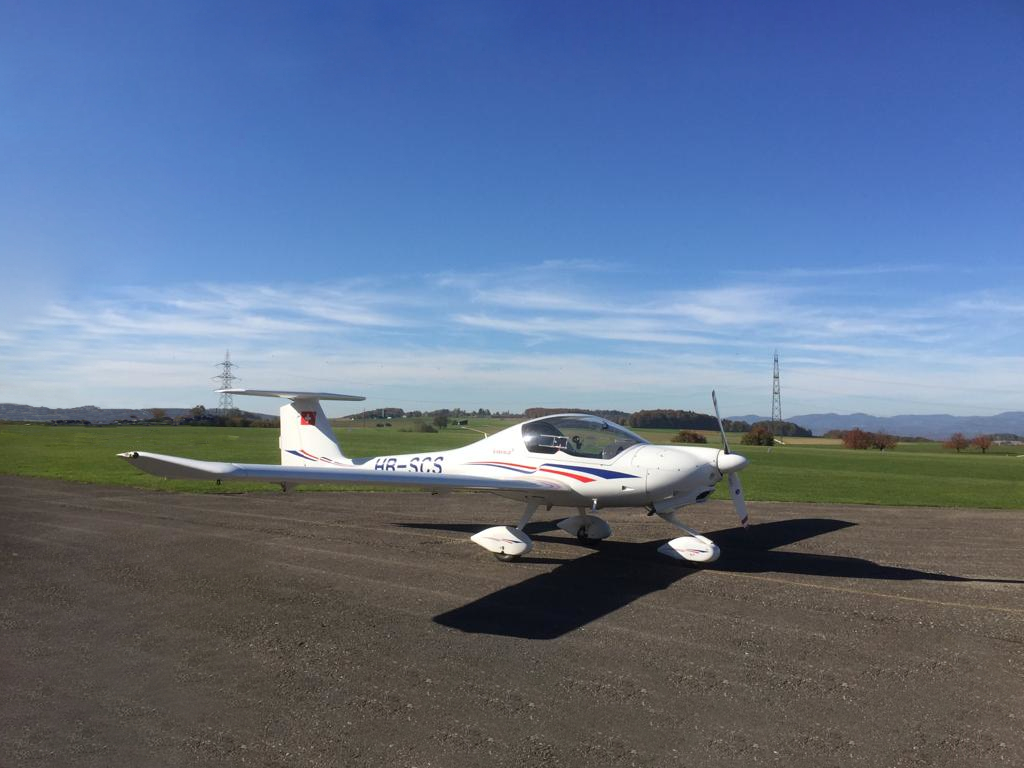

DIAMOND KATANA – DA/DV20

1
2
3
4
5
6
7
8
9
10
1

Wingspan

10.80 Meter

2

Height

2.10 Meter

3

Wheelbase

1.90 Meter

4

Propeller

Two blade – variable pitch, constant speed

Diameter

1.70 Meter

5

Fuel

Mogas or AVGAS

Tank capacity

79 Liter

Range

500 NM/ 925 km

6

Service Ceiling

12’000 Feet

4000 Meters

7

Weight

730 KG

8

Propulsion

Rotax Motor, 4 cylinder 4-cycles control mode
in boxer configuration

Power

59.6 kW / 81 HP

Speed

120 Knots / 220 km/h

9

Length

7.20 Meter

10

Seats

2 Persons incl. Pilot

1
2
3
4
1

Moving-Map-GPS

2

Flightstick

3

Engine instruments

4

Thrust lever
